Multi-Meters

---

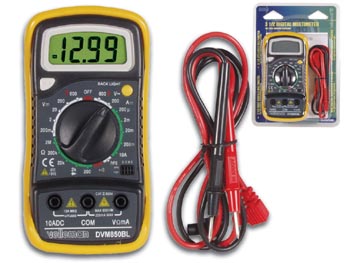

3 1/2 DMM - 10A / HOLD FUNCTION / BACKLIGHT

Features DMM with automatic polarity function and 3 ½ digit LCD display measurements: DC current up to 10A, AC and DC voltage up to 600V, resistance up to 2Mohm diode, transistor and continuity test with buzzer data-hold function and backlight with protection holster Specifications DC voltage: 200m/2/20/200/1000V basic accuracy: - input impedance: - maximum input: 600V AC voltage: 200/600 basic accuracy: - input impedance: - frequency range: - maximum input: 600V DC current: 200µ/2m/20m/200m/10A basic accuracy: - overload protection: 10A AC current: - basic accuracy: - overload protection: - resistance: 200/2k/20k/200k/2M basic accuracy: - overload protection: - capacitance: - accuracy: - inductance: - accuracy: - frequency: - basic accuracy: - overload protection: - temperature: - basic accuracy: - overrange: yes "1" continuity buzzer: yes transistor test: yes diode test: yes low-battery indication: - maximum display: 1999 LCD display size: 1.8" x 0.7" ranging mode: manual data hold: yes backlight: yes dimensions: 2.7" x 5.4" x 1.2" weight (with battery): - power supply: 1 9V 6LR61 battery (incl.) packing: - accessories: - auto power-off: no DVM850BL

MINI 3 1/2 DIGIT DMM - 19 RANGES

Features automatic polarity indication voltage measurements: AC 500V and DC 500V max. current measurements: DC 10A max. resistance measurements: 2Mohm diode and transistor (hFE) test packaging: blister Specifications DC voltage: 200m/2000m/20/200/500V basic accuracy: ±0.5% (±0.25% for 200mV range) input impedance: - maximum input: 500V AC voltage: 200/500V basic accuracy: ±1.2% input impedance: - frequency range: 45-450Hz maximum input: 500V DC current: 200µ/2000µ/20m/200m/10A basic accuracy: ±1.0% (±2.0% for 10A range) overload protection: 200mA 250V fuse (10A-range is not fuse-protected) AC current: - basic accuracy: - overload protection: - resistance: 200/2000/20k/200k/2000k basic accuracy: ±0.8% (±1.0% for 2000k range) overload protection: 220Vrms max. for 15 seconds capacitance: - accuracy: - inductance: - accuracy: - frequency: - basic accuracy: - overload protection: - temperature: - basic accuracy: - overrange: yes continuity buzzer: - transistor test: yes diode test: yes low-battery indication: yes maximum display: 3 1/2 LCD display size: 0.5" ranging mode: manual data hold: no backlight: no dimensions: - weight (with battery): - power supply: 12V battery packing: - accessories: manual / test leads / 1 GP23GA 12V battery auto power-off: no DVM810

---
