Multi-Meters
!

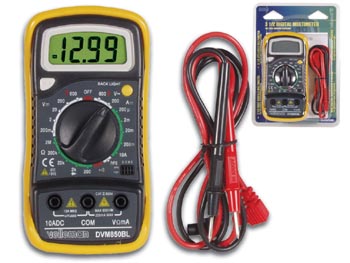

DVM850BL

3 1/2 DMM - 10A / HOLD FUNCTION / BACKLIGHT

Features
  • DMM with automatic polarity function and 3 ½ digit LCD display
  • measurements: DC current up to 10A, AC and DC voltage up to 600V, resistance up to 2Mohm
  • diode, transistor and continuity test with buzzer
  • data-hold function and backlight
  • with protection holster
Specifications
  • DC voltage: 200m/2/20/200/1000V
  • basic accuracy: -
  • input impedance: -
  • maximum input: 600V
  • AC voltage: 200/600
  • basic accuracy: -
  • input impedance: -
  • frequency range: -
  • maximum input: 600V
  • DC current: 200µ/2m/20m/200m/10A
  • basic accuracy: -
  • overload protection: 10A
  • AC current: -
  • basic accuracy: -
  • overload protection: -
  • resistance: 200/2k/20k/200k/2M
  • basic accuracy: -
  • overload protection: -
  • capacitance: -
  • accuracy: -
  • inductance: -
  • accuracy: -
  • frequency: -
  • basic accuracy: -
  • overload protection: -
  • temperature: -
  • basic accuracy: -
  • overrange: yes "1"
  • continuity buzzer: yes
  • transistor test: yes
  • diode test: yes
  • low-battery indication: -
  • maximum display: 1999
  • LCD display size: 1.8" x 0.7"
  • ranging mode: manual
  • data hold: yes
  • backlight: yes
  • dimensions: 2.7" x 5.4" x 1.2"
  • weight (with battery): -
  • power supply: 1 9V 6LR61 battery (incl.)
  • packing: -
  • accessories: -
  • auto power-off: no
DVM810

MINI 3 1/2 DIGIT DMM - 19 RANGES

Features
  • automatic polarity indication
  • voltage measurements: AC 500V and DC 500V max.
  • current measurements: DC 10A max.
  • resistance measurements: 2Mohm
  • diode and transistor (hFE) test
  • packaging: blister
Specifications
  • DC voltage: 200m/2000m/20/200/500V
  • basic accuracy: ±0.5% (±0.25% for 200mV range)
  • input impedance: -
  • maximum input: 500V
  • AC voltage: 200/500V
  • basic accuracy: ±1.2%
  • input impedance: -
  • frequency range: 45-450Hz
  • maximum input: 500V
  • DC current: 200µ/2000µ/20m/200m/10A
  • basic accuracy: ±1.0% (±2.0% for 10A range)
  • overload protection: 200mA 250V fuse (10A-range is not fuse-protected)
  • AC current: -
  • basic accuracy: -
  • overload protection: -
  • resistance: 200/2000/20k/200k/2000k
  • basic accuracy: ±0.8% (±1.0% for 2000k range)
  • overload protection: 220Vrms max. for 15 seconds
  • capacitance: -
  • accuracy: -
  • inductance: -
  • accuracy: -
  • frequency: -
  • basic accuracy: -
  • overload protection: -
  • temperature: -
  • basic accuracy: -
  • overrange: yes
  • continuity buzzer: -
  • transistor test: yes
  • diode test: yes
  • low-battery indication: yes
  • maximum display: 3 1/2
  • LCD display size: 0.5"
  • ranging mode: manual
  • data hold: no
  • backlight: no
  • dimensions: -
  • weight (with battery): -
  • power supply: 12V battery
  • packing: -
  • accessories: manual / test leads / 1 GP23GA 12V battery
  • auto power-off: no
